The rings

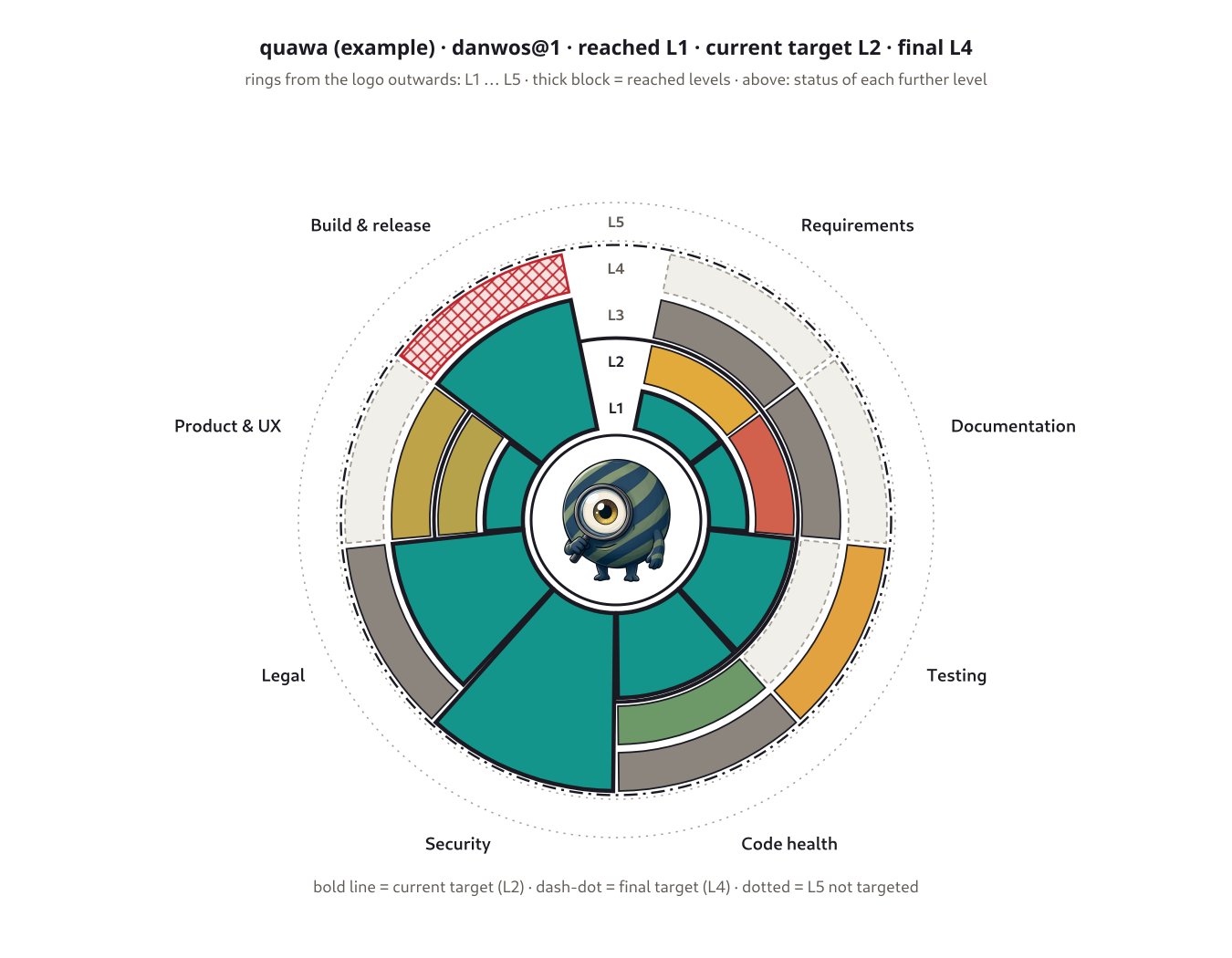

Front view

Score rings around the quawa monster, invented example values

Example with invented values: quawa with danwos@1.

  • Centre: the tool’s monster or logo.

  • Rings: level 1 right around the logo, every further level one ring further out, up to level 5. Level 0 has no ring.

  • Segments: one per area, at the same angle on every ring.

  • Reached block: the reached levels of an area merge into one piece of pie from the logo outwards, thick frame, full “good” colour (Reached levels of an area m... (DEC_REACHED_BLOCK)). Its height is the area’s maturity – the picture gets hills and valleys.

  • On top: every level above the block shows its own state: score colour, dark grey, dashed or hatched (Grey states: not defined = ... (DEC_GREY_STATES)).

  • Lines: bold circle = current target; dash-dot = final target; dotted ring = level not targeted. Rings between the two lines are scheduled – measured and shown already, in force from their date or release.

One picture answers three questions: where the project stands, where it wants to go, and what has already been thought about.

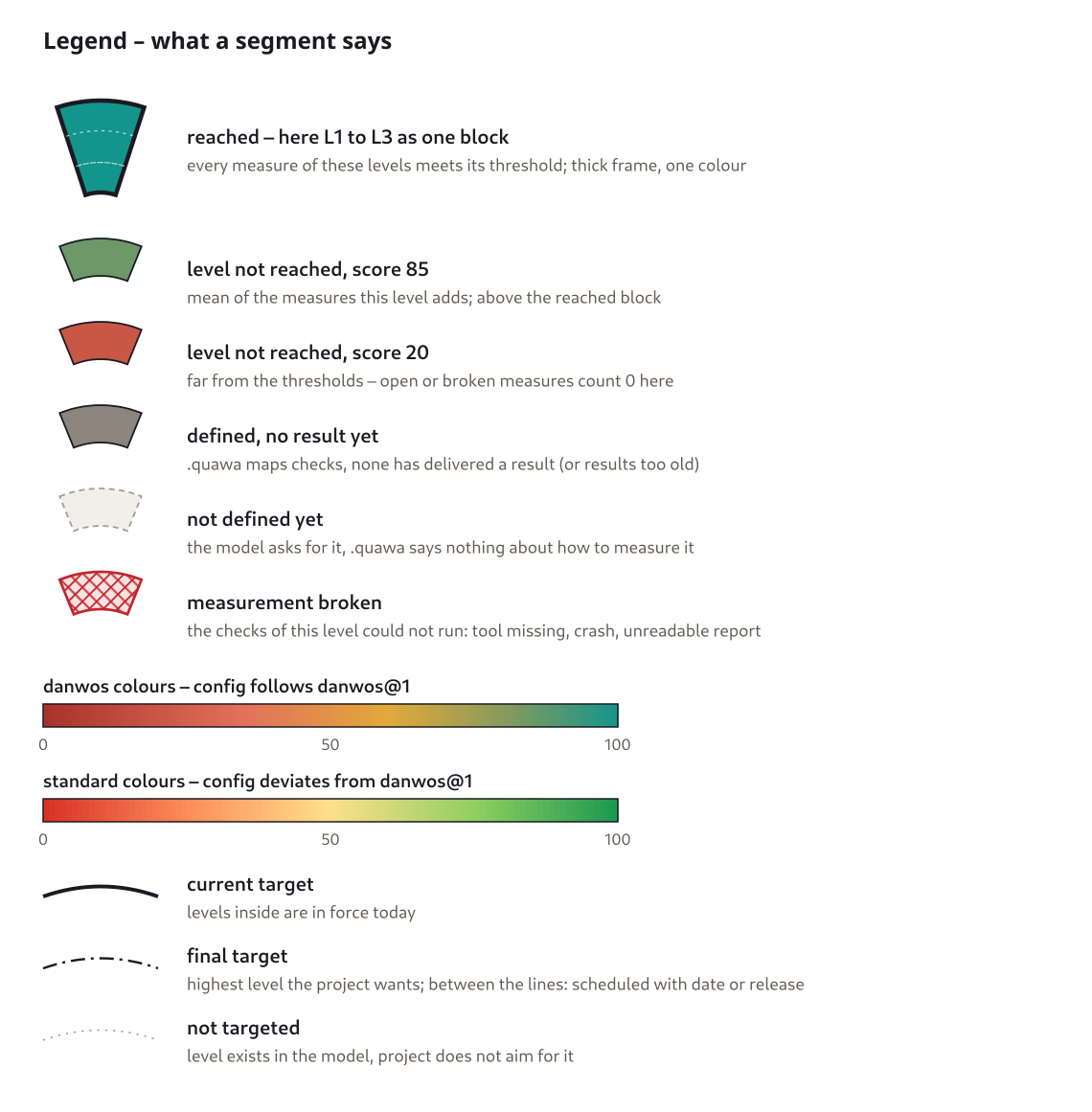

Legend

Legend of the segment states, colour scales and target lines

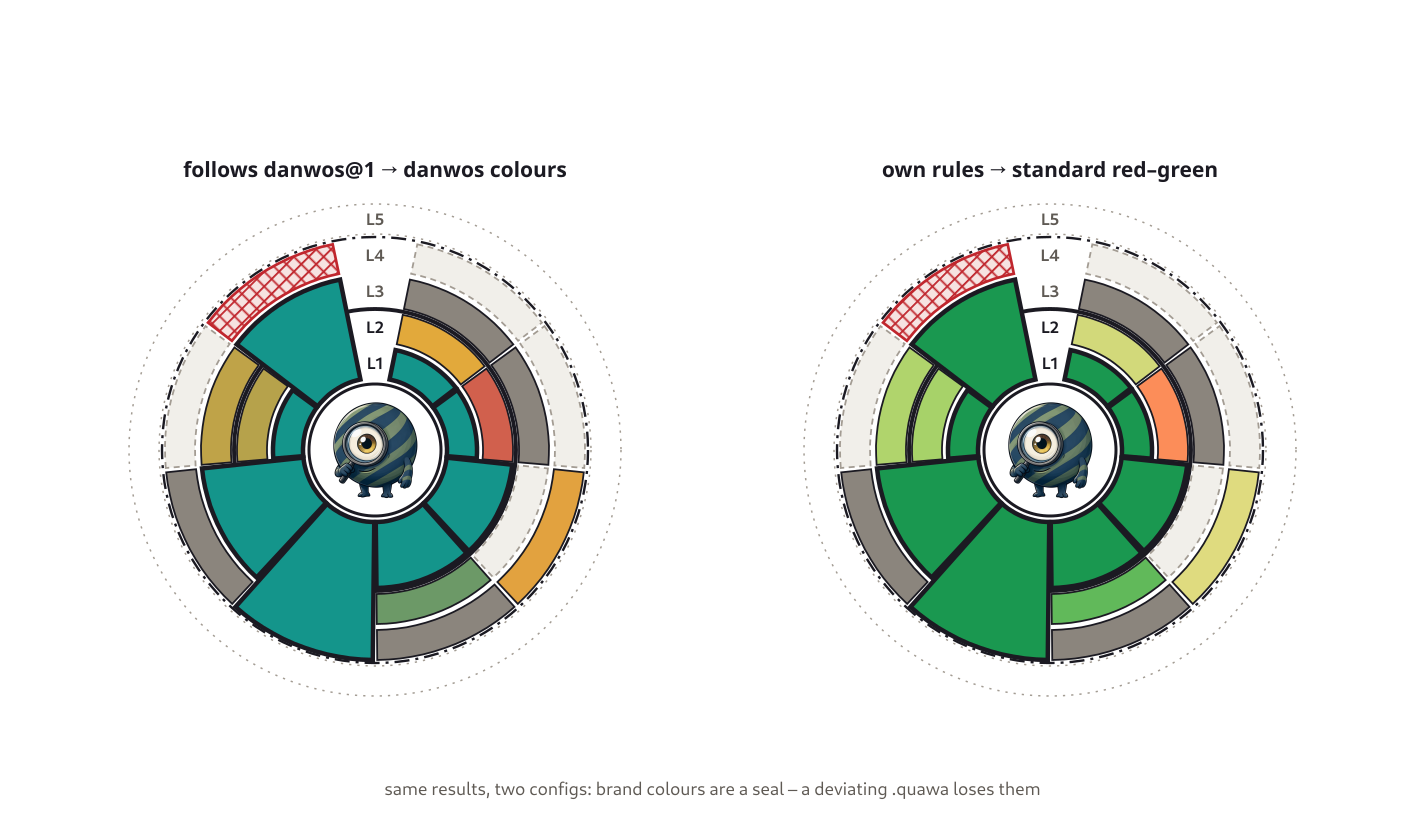

Colours as a seal

The same results in danwos colours and in standard red–green

  • danwos scale – the configuration follows the danwos model: deep terracotta #A8322A → terracotta #E2725B → amber #E2A93B → moss #8A9A5B → logo teal #14958B.

  • standard scale – the configuration deviates: red #D73027 → yellow #FEE08B → green #1A9850.

  • The whole picture switches, not single rings (A configuration that follow... (DEC_COLOUR_SEAL)). When a configuration keeps the danwos colours: see Configuration.

  • Neither scale is checked for colour blindness yet; the score in the tooltip, the thick frame and the patterns carry the meaning too.

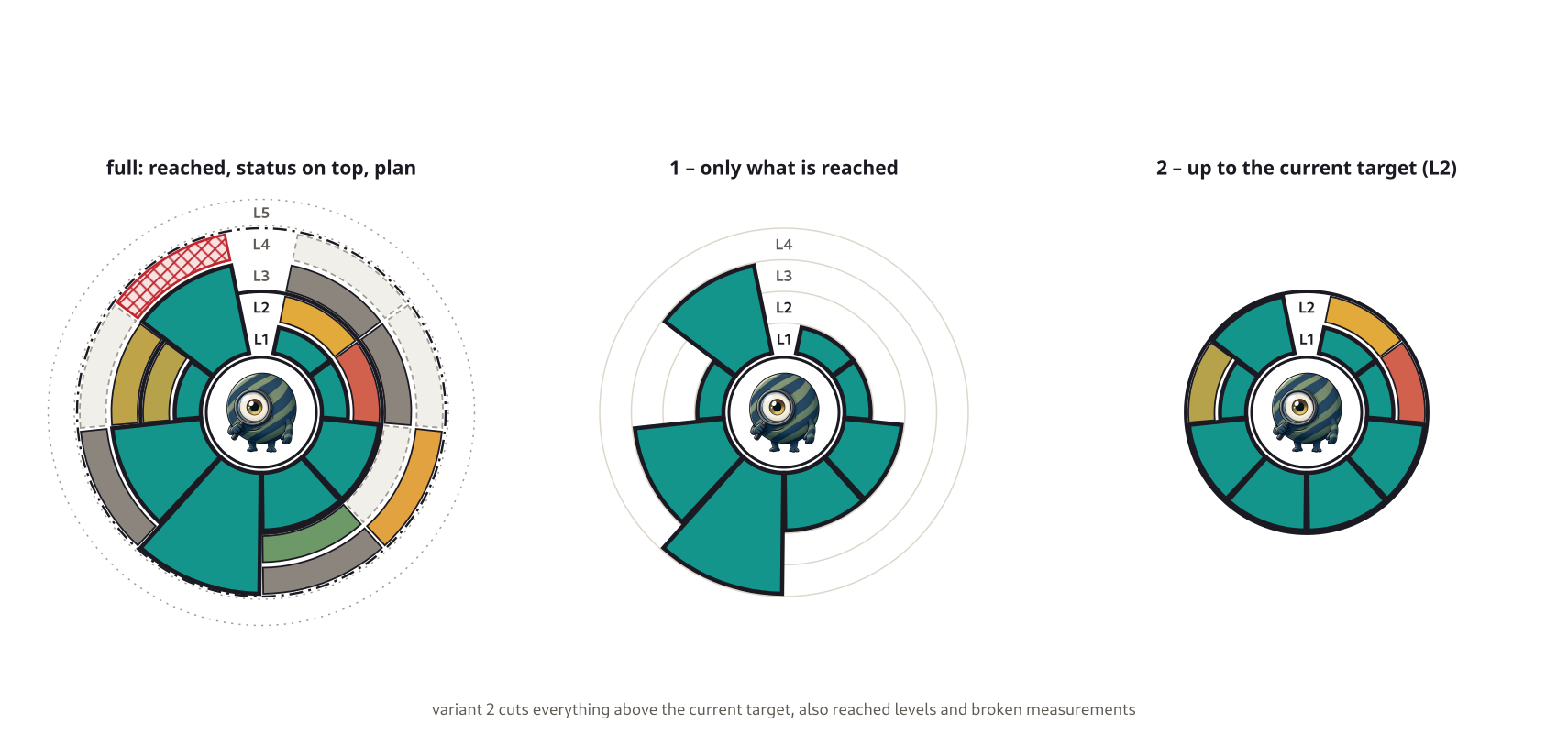

Slim variants

Full view, only reached levels, and up to the current target

Variant

Shows

Hides

For

full

everything

–

the complete picture

reached

only the reached blocks, thin guide circles, level labels

everything not reached, target lines

“where do we stand” at a glance

target

everything up to the current target

everything above it – also reached levels and broken measurements (Slim variant "target" hides... (DEC_TARGET_VARIANT))

“what do we owe today”

3D view (idea)

A 3D view of the rings – measures behind every segment, levels to pull apart – is only an idea, not planned for quawa. A pure concept of how it could look, with made-up data: How mature is a tool? on danwos.dev.
